Window Balances

We carry many types of window balances.  Below are our most popular types of Channel Balances and Spiral Balances.   Please order carefully as window balances are custom made and are non-returnable.

Please note: The numbers/letters stamped on Channel Balances are not enough information to order.  Please refer to the "How to order" section by clicking on the appropriate link below.

Sorry we cannot identify window balances by photos as many things need to be measured and/or compared.

If you are unsure of what to order, you can send a sample of the balance(s) you need to us at:

                                                                   AMSCO

                                                                   Attn: Parts ID

                                                                   7313-C Grove Rd

                                                                   Frederick, MD 21704

Be sure to include your name, address, and phone # so we can contact you once we have your balance(s) identified.

Channel Balances

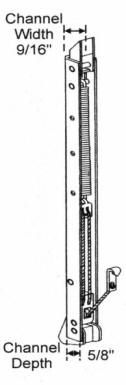

60 Series - Non Tilt 5/8"

Just click on link above.

  • Used in aluminum windows since 1960s

  • Must always have a plastic top & bottom guide attached

  • Many guide variations available





61 Series - Non Tilt 5/8"

Just click on link above.

  • Metal channel has hemmed edges

  • Must always have a plastic top & bottom guide attached.

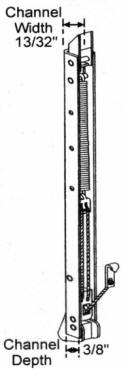

64 Series - Non Tilt 3/8"

Just click on link above.

  • This is the 3/8" version

          of the 60 series

  • Used primarily in the southeast

  • Binnings & Moss were the 2 largest users

  • Must always have a plastic top & bottom guide attached

See more
Channel Balance
Series below

















Channel Balances

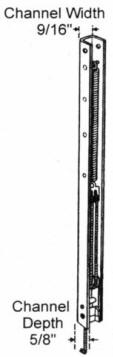

62 Series - Tilt 5/8"

Just click on link above.

  • Must always have an

          end attached to string

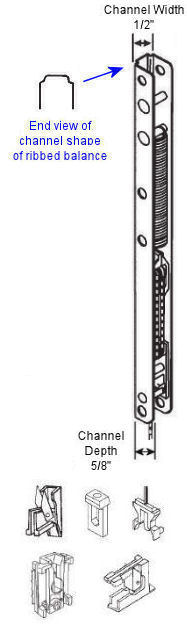

62A Series - Tilt

Ribbed Balance

Just click on link above.

  • Must always have an

          end attached to string

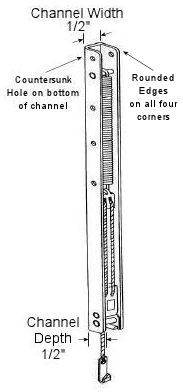

62FC Series - Tilt

Just click on link above.

  • Must always have an

          end attached to string







Peachtree

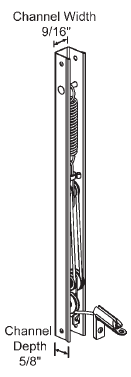

60P Series - Non Tilt

Just click on link above.





  • Only used on some Peachtree windows

















Spiral Balances

85 Series - Tilt 5/8"

Just click on link above.



  • Metal tube

  • Used in aluminum &

          vinyl windows

83 Series - Tilt 3/8"

Just click on link above.

  • Metal tube

70 Series - Non Tilt 5/8"

Just click on link above.

  • Metal tube

  • Used in both wood & aluminum windows

76 Series - Non Tilt 3/8"

Just click on link above.

  • Metal tube

Spiral Balances

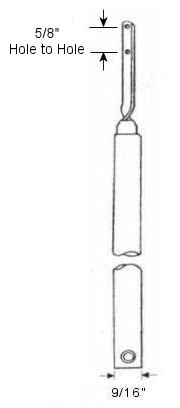

72 Series Non Tilt

Just click on link above.



Example Carrier





  • Metal tube

  • Always has a plastic carrier attached

  • Don't confuse with 85

          Tilt Series

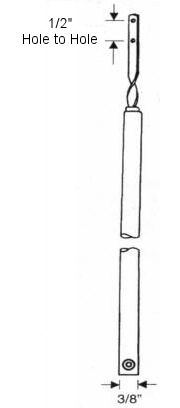

74 Series Non Tilt

Just click on link above.



Example Carrier



  • Metal tube

  • Always has plastic end attached

  • Don't confuse with 83

          Tilt Series

  • The difference between 74 & 75 series is the hole center distance in the spiral rod



75 Series Non Tilt

Not yet on-line.  Call us

to request more info.

  • Metal tube

  • Always has metal guide attached

  • The difference between 74 & 75 series is the hole center distance in the spiral rod














Orders less than $25 incur a $5 small order handling fee.   |   Sorry, we only accept orders from and ship within the USA.

Please order carefully as items authorized for return incur a 25% restocking fee.
